Cooling

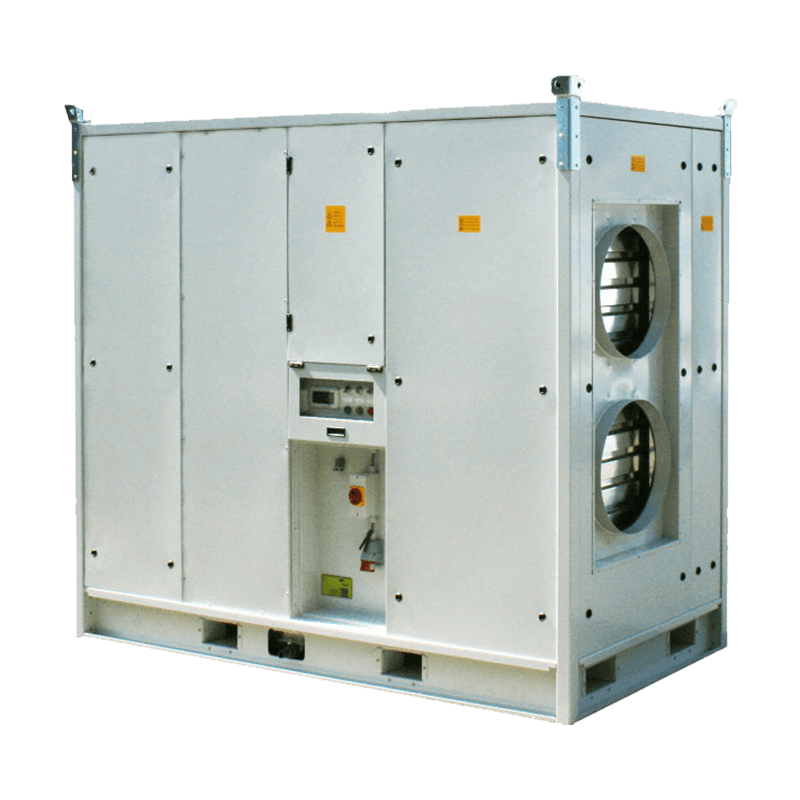

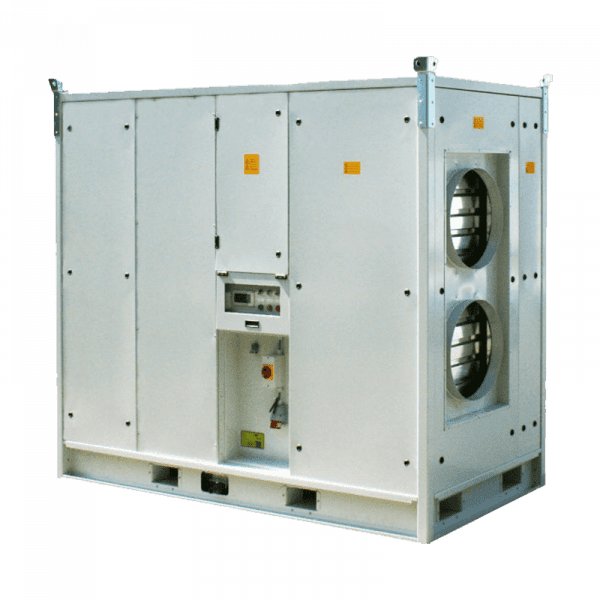

150kW AHU
- Energy efficient Eurovent Class A
- EC fans (no belts or pulleys)
- Internal 3-way valve for temperature adjustment on remote probe, reduces compressor running hours on connecting chillers, resulting in significant energy savings
- Discharge and return air twin 500mm spigot
- Remote monitoring available – with user interface
- Panel mounted 16A, 3 phase plug
- Can be paired with compatible discharge or double strength suction ducting to achieve more efficient return air application
Specification
| Cooling Capacity | 155 kW |
|---|---|
| Heating Capacity | 300 kW |
| Fluid Nominal Conditions | 7/12/30°C |
| Air Nominal Conditions | 10/30°C |
| Fluid Flow Rate | 26.5 m3/h |
| Fluid Temperature | 1-80°C |
| Maximum Air Temperature | 50°C |
| Power Supply | 400 / 3 / 50 + E (No Neutral) V-/-ph-Hz |
| Plug Type | 16a 3ph 5 pin |
| Maximum Running Current | 15 A |
| H x W x D | 2250 x 1220 x 2630 mm |
| Weight | 875kg |
