Cooling

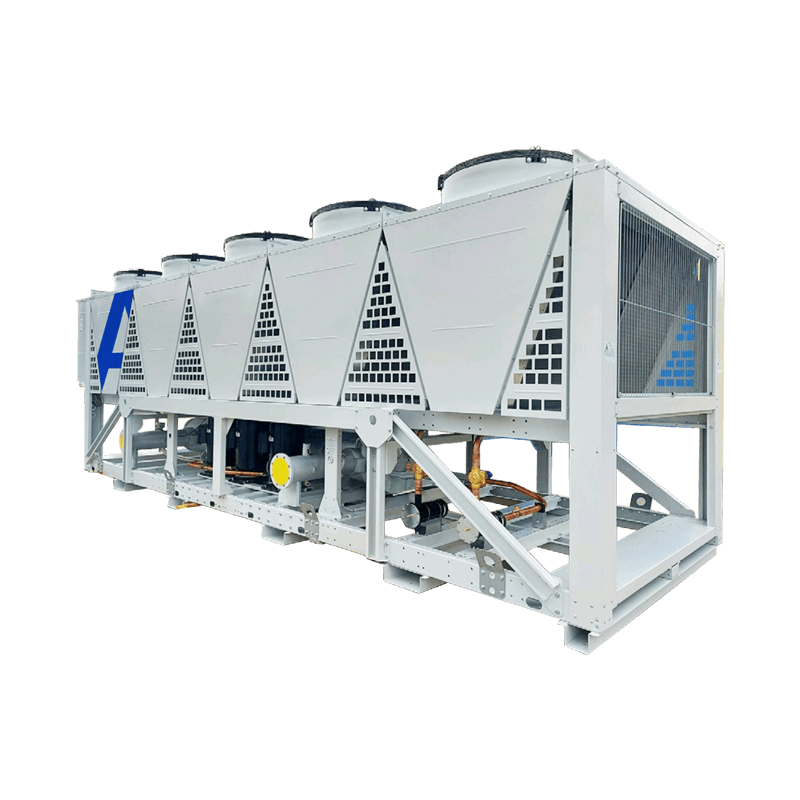

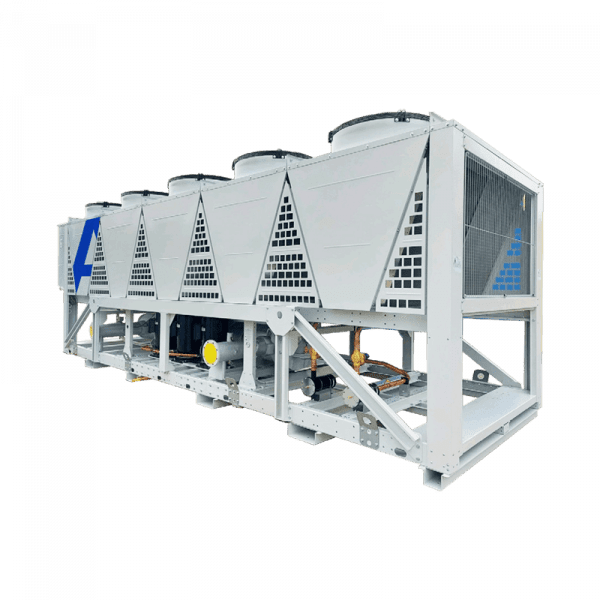

560kW Chiller
Aircooled chiller with scroll compressors and Shell and Tube evaporator
- Highly energy efficient, dual circuit, multiple scroll compressors
- Low GWP refrigerant R454B
- Internal free cooling controls and remote probe as standard
- Remote pump feed is integral on a panel mounted socket
- Lifting eyes, protective frames and fork pockets as standard
- Integral flow switch so no separate assembly required
- Units have very compact footprint due to V bank design condensers
- Operational temperature range between -10°C up to +20°C
- Condenser coil protection grid
Specification
| Cooling Capacity | 557.14 kW |
|---|---|
| Design Conditions | Ambient: 30°C / Entering: 12°C / Leaving: 7°C |
| Energy Efficiency Ratio | 4.1 kW |
| Refrigerant Gas | R-454A |
| Type of Evaporator | Shell and Tube |
| H x W x D | 2604 x 2220 x 5900 mm |
| Weight | 3950kg (empty) |
