Heating

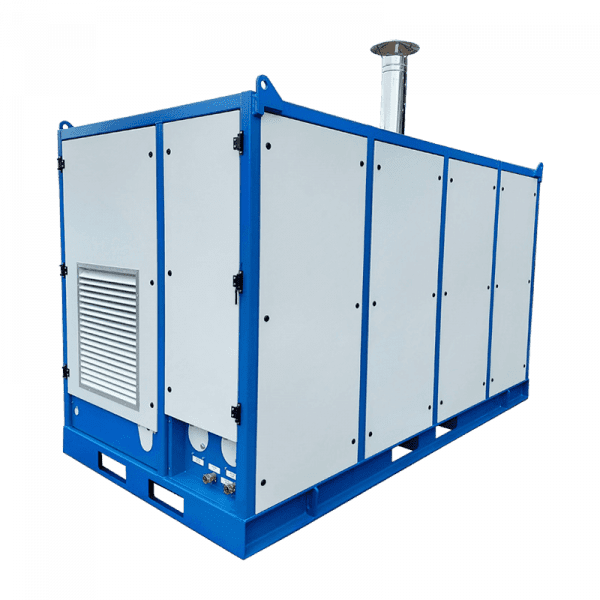

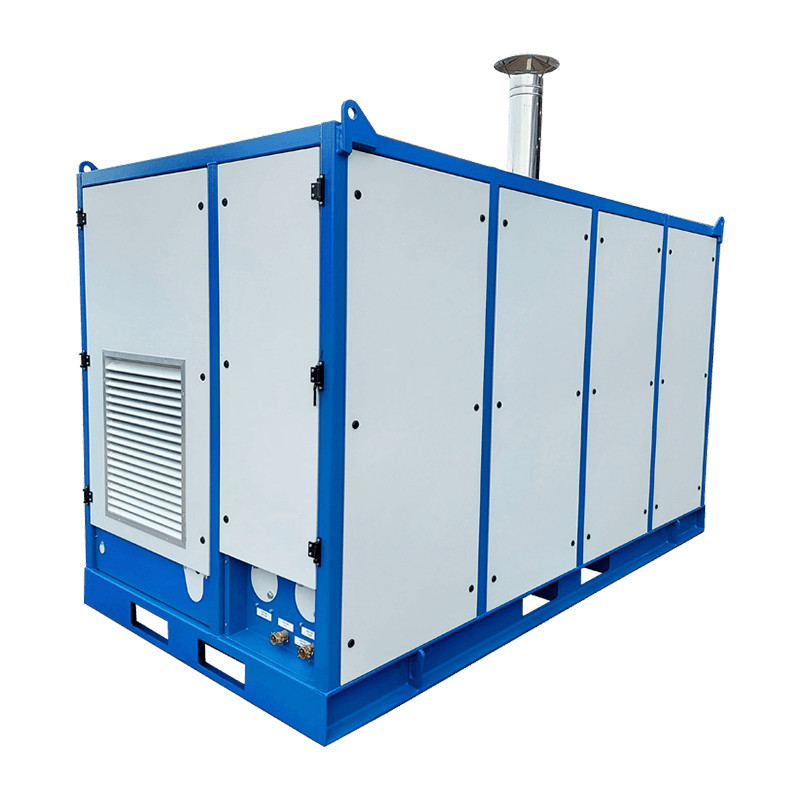

600kW Boiler
High Efficiency oil fired LTHW boiler
- Industry leading 94% fuel efficient Weishaupt burner and Viessman boiler
- Fully packaged, Containerised unit
- Easy to use digital controls
- Easily manoeuvrable
- Internal pressure relief valves, selectable at 4 or 10 bar
- Secondary circuit with large expansion tank built in
- Can be coupled with our range of ancillaries including hoses, fittings, fuel tanks and hygienic modules/calorifiers for DHW applications
Specification
| Heating Output | 600 kW |
|---|---|
| Temperature Range | 20-82°C |
| Total System Volume | 820 L |
| Minimum Working Pressure | 1 Bar |
| Maximum Working Pressure | 9 Bar |
| Fuel Efficiency | 94% |
| Fuel Type | Oil |
| H x W x D | 2332 x 2000 x 3700 mm |
| Weight | 3700kg |
