Cooling

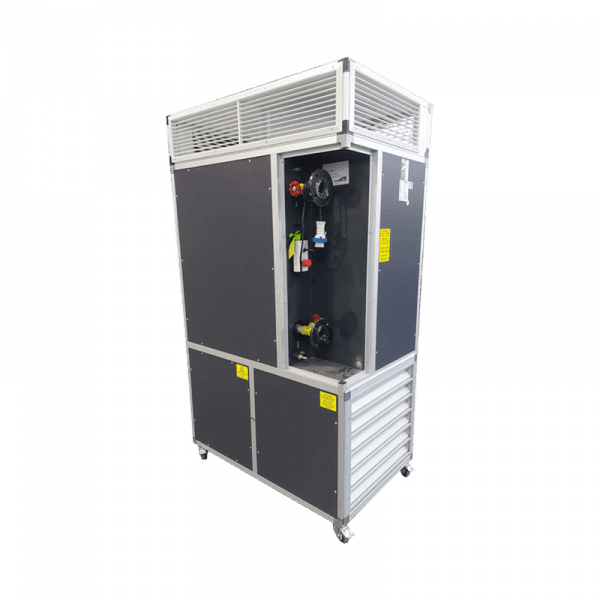

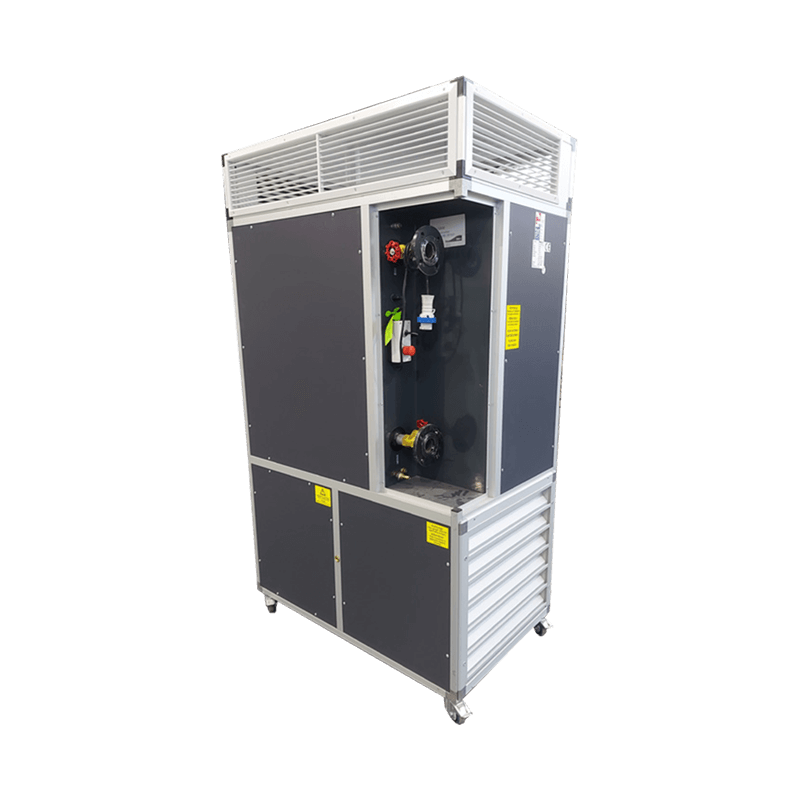

70kW AHU
- Can be paired with compatible chiller or boiler to provide cooling or heating to your event, warehouse, data centre, workspace application
- Simple to use
- Inverter fan speed control
- Easy to access for replacement of filters
- Vertical Discharge Spigot 500mm, Option for horizontal discharge top box (as pictured)
- Unit mounted on castors for ease of positioning
- Panel mounted 16A, phase plug
- Can be paired with our compatible cold air delivery ducting
Specification
| Cooling Capacity | 70 kW |
|---|---|
| Sensible Cooling Capacity | 49 kW |
| Heating Capacity | 140 kW |
| Cooling Nominal Conditions | 7/12°C |
| Heating Nominal Conditions | 50/70°C |
| Fluid Flow Rate | 12 m3/h |
| Fluid Temperature | 1-80°C |
| Maximum Air Temperature | 1-80°C |
| Power Supply | 400 / 3 / 50 + E (No Neutral) V-/-ph-Hz |
| Plug Type | 16a 1ph 5 pin C-Forme |
| Maximum Running Current | 5.3 A |
| H x W x D | 2210 x 790 x 1300 mm (with Top Box) |
| Weight | 235kg |
