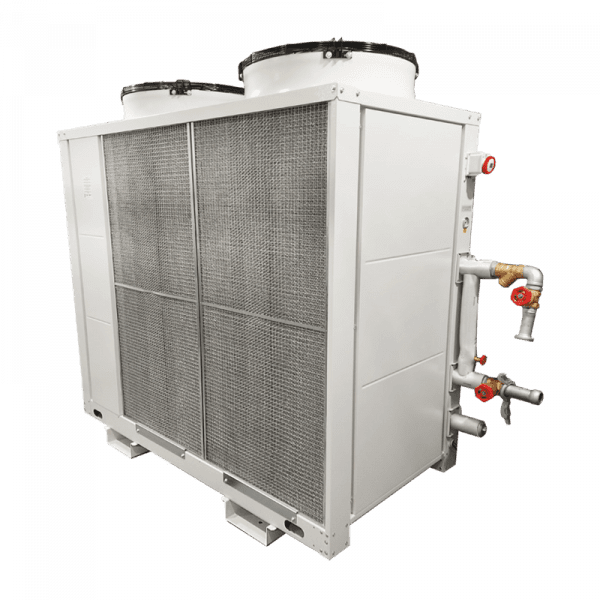

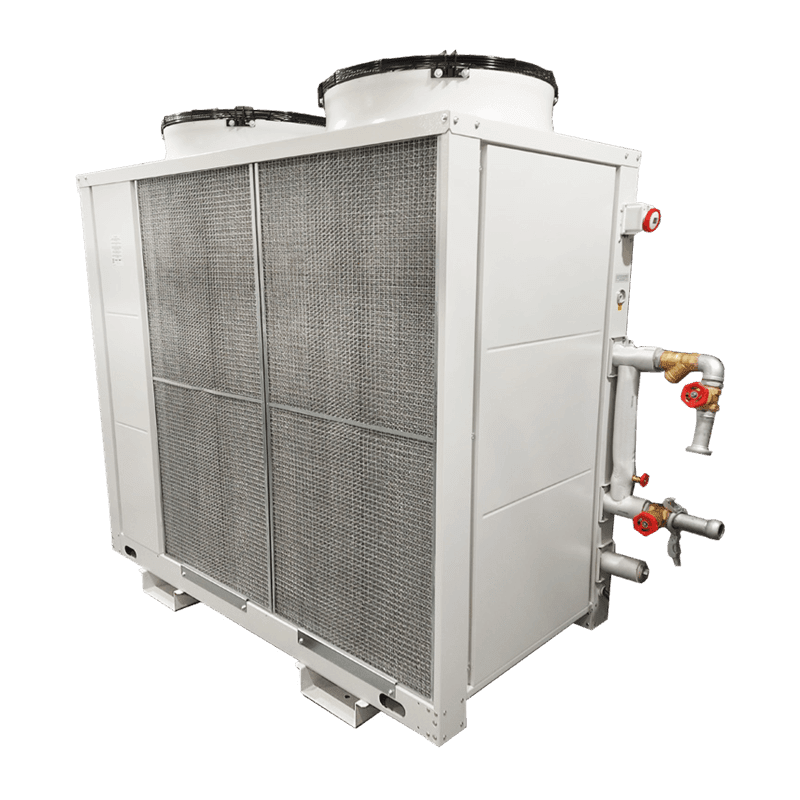

75kW Chiller

Aircooled chiller with scroll compressors and coaxial evaporator
  • Large volume coaxial evaporator, ideal for process operations (4kW-75kW models)
  • The 160kW unit has a large shell and tube evaporator and 400 litre tank
  • Excellent EER (energy efficiency ratio) co-efficiencies
  • Integral manual bypasses, helps with ease of commissioning
  • Y-strainer on every unit, protects chillers and your process from fouling
  • An entirely packaged unit, can be modified for non-ferrous applications
  • Built in option of a high-pressure pump
  • Controls are very simple, making set up quick and easy
  • Vented or pressurised option as standard – no modifications necessary
  • If not using the internal pump there is a dedicated feed on the evaporator to run a high-pressure pump, entirely excluding the internal pump

Specification

Cooling Capacity

76.32 kW

Design Conditions

Ambient: 30°C / Entering: 12°C / Leaving: 7°C

Energy Efficiency Ratio

3.17 kW

Refrigerant Gas

R-410A

Type of Evaporator

Coaxial

H x W x D

2223 x 1130 x 2405 mm

Weight

780kg (empty)
