Heating

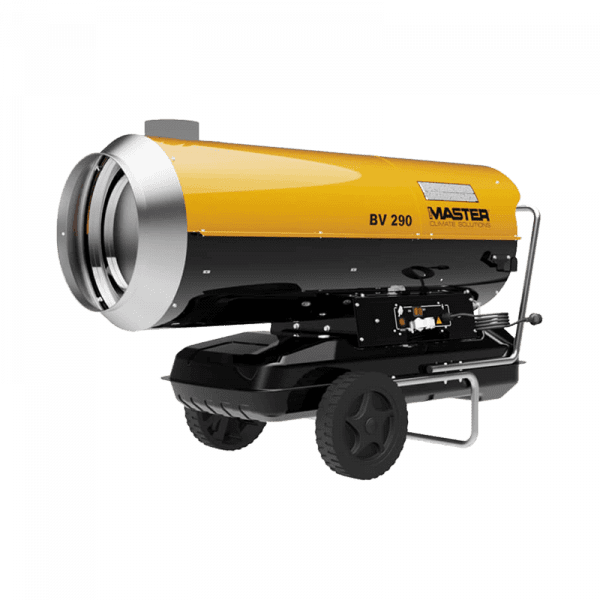

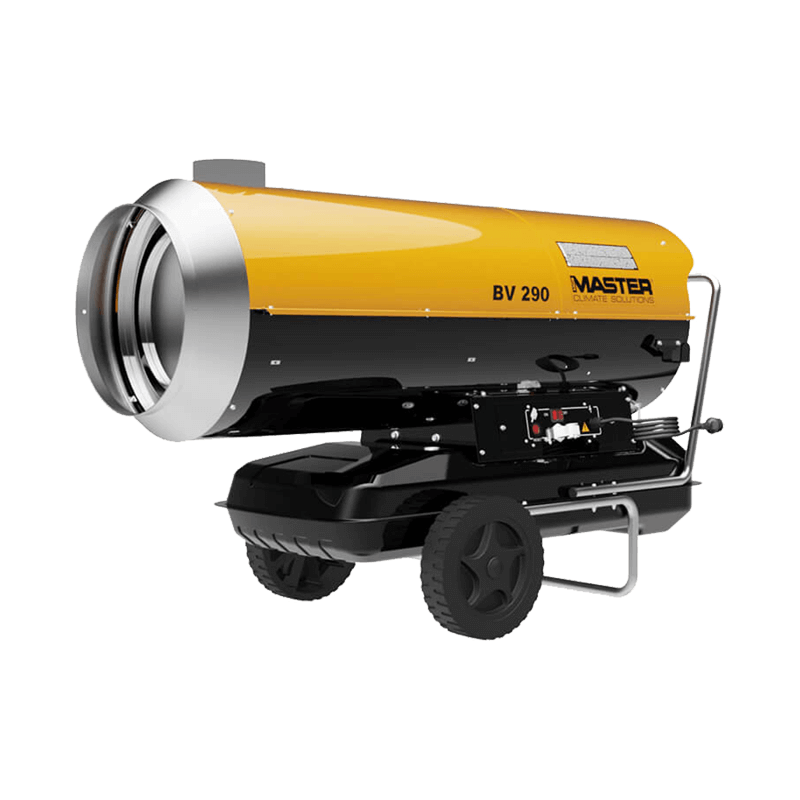

85kW Dual Voltage Indirect Diesel Oil Heater
- High efficiency
- 100% clean, dry and fume-free warm air
- Ideal for places with limited ventilation
- Optional connection to a flexible tube
- Flue gas exhaust
- Heat exchanger
- Overheat thermostat
- Post-ventilation
- Thermally protected motor
- Three oil filters: oil pump, suction, inlet
- External suction filter with transparent glass cup
- Electronic flame control with photocell
- Stainless steel combustion chamber
- Oil tank with level indicator
- Trolley included
- High quality brand fuel pump
- Fuel pump with access for easy maintenance
- Snorkel – breather for non-drip fuel tank
- Diagnostic LED
Specification
| Heating Power | 85 kW, 290,000 Btu/h, 73,100 kcal/h |
|---|---|
| Air Flow | 3,300 m3h |
| Fuel Autonomy | 13 h |
| Thermostat Control | Analogue or Digital |
| Fuel Consumption | 8.1 l/h |
| Power Supply | 220-240/1ph/50-60 V/Hz |
| Electric Power | 1.06 kW |
| Rated Current | 4.6 A |
| Protection | IP44 |
| Tank Capacity | 105 l |
| Flue Tube | 150 Ømm, 41 Øcm |
| Product Size (L x W x H) | 1600 x 700 x 1150 mm |
| Box Size (L x W x H) | 1670 x 750 x 1180 mm |
| Net/Gross Weight | 101/123 kg |
| Dual Voltage | Available |
| Ancillaries Available: | Ducting, Fuel Tanks, Thermostat, Ducting Splitter, Ducting Diffusers, Power Extension Cables |
