Heating

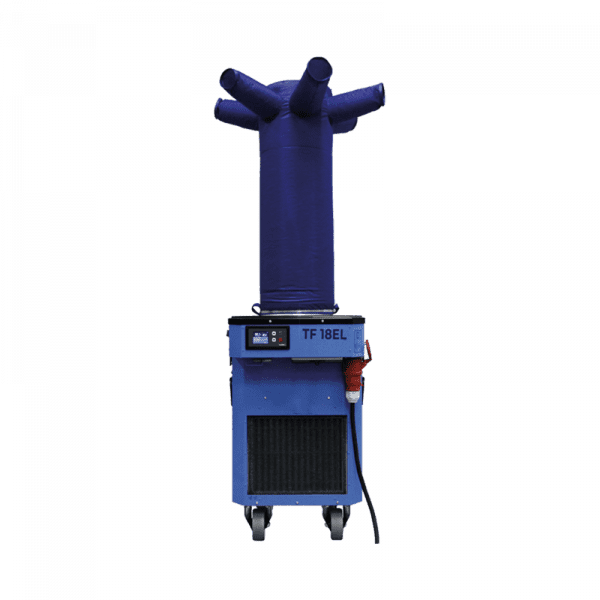

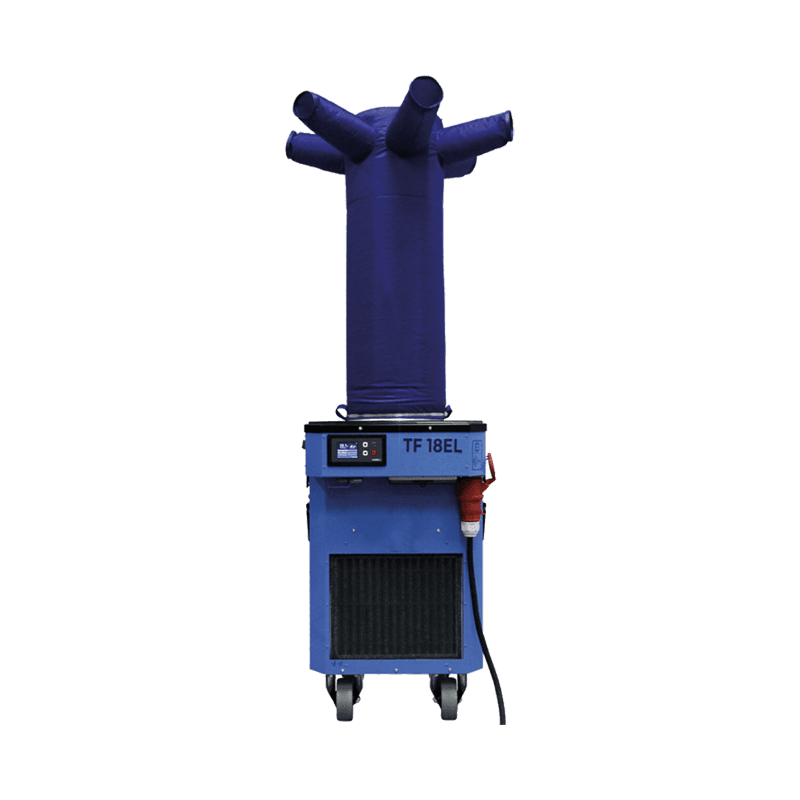

TF 18EL EBC

  • New, updated design
  • Two filters for consistent, high-volume air flow and lower noise level
  • Improved filters with additional pre-filter in a choice of filter grades. G4 standard filter
  • Textile or metal air distributor spreads air around the room and gives 360 degree coverage and maximum throw
  • The very compact chassis means that the fan units can be placed in confined spaces such as stairwells, marquees and apartments
  • The lightweight design makes them easy to lift, move, transport or hang from a wall
  • Accessible, modular construction
  • Removable top for easy cleaning/servicing
  • High temperature increase (ΔT) and large air flows for maximum energy efficiency
  • Automatic cool-down extends product life (TF 36EL, TF 72EL)
  • Smart control card
  • Lockable, password-protected display
  • Choice of operating modes: Drying, Event, Heating
  • Electronic thermostat for room temperature control

Specification

Input

32A CEE 432-6

Rated Current

27 A

Voltage

3N~400V

Total Heat Output

18 kW

Power Settings

9-18 kW

Air Flow

2500/2040 m3/h

Temperature Increase

22/23

Noise Level

62/57 db(A)

Weight

66kg (total)

Protection Rating

IP44

Average Seasonal Efficiency

36%
