Heating

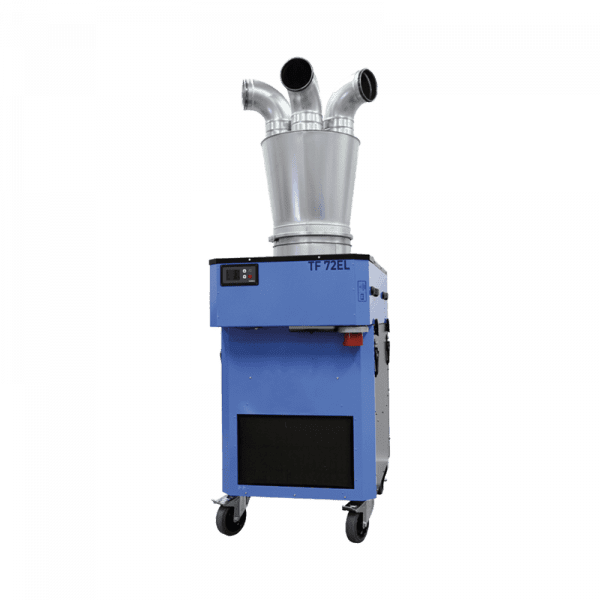

TF 72EL EBC
- New, updated design
- Two filters for consistent, high-volume air flow and lower noise level
- Improved filters with additional pre-filter in a choice of filter grades. G4 standard filter
- Textile or metal air distributor spreads air around the room and gives 360 degree coverage and maximum throw
- The very compact chassis means that the fan units can be placed in confined spaces such as stairwells, marquees and apartments
- The lightweight design makes them easy to lift, move, transport or hang from a wall
- Accessible, modular construction
- Removable top for easy cleaning/servicing
- High temperature increase (ΔT) and large air flows for maximum energy efficiency
- Automatic cool-down extends product life (TF 36EL, TF 72EL)
- Smart control card
- Lockable, password-protected display
- Choice of operating modes: Drying, Event, Heating
- Electronic thermostat for room temperature control
Specification
| Input | 125A CEE 4125-6 |
|---|---|
| Rated Current | 110 A |
| Voltage | 3N~400V |
| Total Heat Output | 72 kW |
| Power Settings | 36-72 kW |
| Air Flow | 7910/6454 m3/h |
| Temperature Increase | 40/47 |
| Noise Level | 69/63 db(A) |
| Weight | 180kg (total) |
| Protection Rating | IP44 |
| Average Seasonal Efficiency | 36% |
